Setting up ROScopter in Sim

This tutorial guides you through setting up ROScopter, the multirotor autopilot system, in simulation. ROScopter provides basic autonomous flight capabilities for multirotor vehicles.

This tutorial will walk you through:

• Launching the roscopter autonomy stack
• Flying waypoint missions
• Some basic analysis of what is going on

Prerequisites

• Manually flying in ROSflight Sim

ROScopter Overview

ROScopter is a ROS2-based autopilot system designed for multirotor vehicles.

Major System Components

• Estimator: EKF for state estimation
• Controller: Cascading PID controller with multiple control modes
• Trajectory Follower: Trajectory tracking between waypoints (like a path follower)
• Path Manager: Waypoint following and trajectory management
• Path Planner: High-level mission planning and execution

Control Hierarchy

The ROScopter controller is designed so that uses can interface with it at a variety of levels. See the roscopter_msgs/msg/ControllerCommand message definition for more information.

Tip

Use ros2 interface show roscopter_msgs/msg/ControllerCommand to see the message definition.

Launching standalone_sim

The standalone simulator provides a lightweight simulation environment using RViz for visualization. This is the recommended starting point for ROScopter simulation.

Launch the multirotor simulation:

# Start the standalone simulator with ROSflight firmware simulation
ros2 launch rosflight_sim multirotor_standalone.launch.py use_vimfly:=true

The RViz simulation environment should launch.

See the manually flying guide for instructions on launching, configuring, and arming in sim.

Launching ROScopter Autonomy Stack

The ROScopter autonomy stack is a collection of ROS2 nodes that provide autonomous flight capabilities on top of the basic simulation.

In a new terminal, run:

ros2 launch roscopter_sim sim.launch.py

This launch file does 2 things:

1. Launches roscopter autonomy stack by calling the roscopter.launch.py file. This file launches most of the nodes we'll explore later.
2. Starts the sim_state_transcriber node. This node publishes the truth state from the simulation as a roscotper/msg/State message so we can easily compare estimated and true state.

Understanding the ROScopter Stack

Let's take a look at the nodes that we just ran:

# Check ROScopter-specific nodes
ros2 node list

You should see the following output:

➜  ~ ros2 node list
/autopilot
/estimator
/external_attitude_transcriber
/path_manager
/path_planner
/roscopter_truth
/trajectory_follower

Node Descriptions

• /autopilot: Main controller node that implements cascading PID control loops (position → velocity → attitude → rate) and manages flight modes
• /estimator: EKF that fuses IMU, GPS, and barometer data to provide state estimation (position, velocity, attitude)
• /external_attitude_transcriber: Converts external attitude references from the estimator to external_attitude messages that are sent to the firmware estimator (helps the firmware estimator not drift)
• /path_manager: Manages waypoint sequences and generates smooth trajectory segments between waypoints
• /path_planner: High-level mission planning node that handles waypoint loading
• /roscopter_truth: Simulation truth state publisher that provides ground truth data for comparison with estimated state
• /trajectory_follower: Tracks generated trajectory segments and outputs position/velocity commands to the autopilot

Let's now take a look at the topics specific to roscopter:

# Check ROScopter-specific topics
ros2 topic list

You should see the following output (note that these are topics from only the roscopter launch file):

➜  ~ ros2 topic list
/baro
/command
/estimated_state
/external_attitude
/gnss
/high_level_command
/imu/data
/magnetometer
/parameter_events
/rosout
/sim/roscopter/state
/sim/truth_state
/sim/wind_truth
/status
/trajectory_command
/waypoints

Some Key Topic Descriptions

• Messages that the estimator subscribes to:
  • /baro: Barometric pressure sensor data for altitude estimation
  • /gnss: GPS position and velocity measurements
  • /imu/data: IMU sensor data (accelerometer, gyroscope measurements)
  • /magnetometer: Magnetometer readings for heading estimation
• /command: Commands sent to ROSflight firmware (see rosflight_msgs/msg/Command for details)
• /estimated_state: Complete vehicle state from EKF (position, velocity, attitude, angular rates)
• /external_attitude: External attitude reference sent to firmware estimator to prevent drift
• /high_level_command: High-level control commands from trajectory_follower to autopilot
• /sim/roscopter/state: ROScopter-formatted state message from simulation truth
• /trajectory_command: Trajectory commands from path manager to trajectory follower
• /waypoints: Current waypoint list and mission information

When we fly waypoint missions, we will load waypoints to the path_planner using a service call. The chain of information flows from the path_planner to the path_manager, trajectory_follower, autopilot, and finally on to the firmware. You can see this in the rqt_graph image (by running rqt_graph in a new terminal):

Launch Ground Control Station

The ground control station will plot waypoints that we pass to ROScopter. It can be helpful to launch this so we can see if ROScopter is actually doing what we want it to do.

# In a new terminal (source workspace first)
ros2 launch roscopter_gcs rosplane_gcs.launch.py

This will launch another instance of RViz that will display different information than the main simulation pane.

Loading Missions

ROScopter supports loading waypoint missions through waypoints defined in YAML files or set through ROS services. These waypoints will be uploaded to the path_planner node using the path_planner's ROS2 services.

Using Waypoint Files

Waypoints can be loaded in batch manner from a file.

Create or modify waypoint files:

# Edit the default waypoint file
vim /path/to/rosflight_ws/src/roscopter/roscopter/params/multirotor_mission.yaml

Example waypoint file structure:

# WAYPOINTS
wp:
  type: 1                   # Waypoint type (0=hold, 1=go to)
  w: [0.0, 0.0, -10.0]      # Position [North, East, Down] in meters
  speed: 4.0                # Desired speed (m/s)
  psi: 0.0                  # Desired heading (radians)
  use_lla: false            # Use NED coordinates (not GPS lat/lon/alt)
wp:
  type: 1
  w: [20.0, 0.0, -10.0]
  speed: 4.0
  psi: 0.0
  use_lla: false
wp:
  type: 0                   # "Hold" waypoint
  w: [20.0, -20.0, -20.0]
  speed: 4.0
  psi: 0.0
  use_lla: false
  hold_seconds: 5.0         # Hold for 5 seconds
  hold_indefinitely: false

Waypoint Parameters:

• type: Waypoint type (0 = hold, 1 = go to waypoint)
• w: Position coordinates [North, East, Down] (in meters NED frame or LLA)
• speed: Desired flight speed in m/s
• psi: Desired heading in radians
• use_lla: Set to false for NED coordinates, true for GPS coordinates
• hold_seconds: Time to hold at waypoint (0.0 = no hold)
• hold_indefinitely: If true, holds at waypoint until manual command

Load waypoints from mission file using the service call:

# Load waypoints from the default mission file
cd /path/to/rosflight_ws/src/roscopter/roscopter/params
ros2 service call /path_planner/load_mission_from_file rosflight_msgs/srv/ParamFile \
  "{filename: $(pwd)/multirotor_mission.yaml}"

Setting Waypoints Manually

You can also add waypoints dynamically using the following services:

# Add a single waypoint (North=5m, East=5m, Down=-4m, Yaw=0rad)
ros2 service call /path_planner/add_waypoint roscopter_msgs/srv/AddWaypoint \
  "{wp: {w: [5.0, 5.0, -4.0], psi: 0.0}, publish_now: true}"

# Clear all current waypoints
ros2 service call /path_planner/clear_waypoints std_srvs/srv/Trigger

The structure of the wp field in the roscopter_msgs/srv/AddWaypoint service is the same as described above. The structure of the service can be seen using:

ros2 interface show roscopter_msgs/srv/AddWayoint

which will output:

➜  ~ ros2 interface show roscopter_msgs/srv/AddWaypoint
# Add a Waypoint to the waypoint list

roscopter_msgs/Waypoint wp
    uint8 TYPE_HOLD = 0
    uint8 TYPE_GOTO = 1
    std_msgs/Header header
        builtin_interfaces/Time stamp
            int32 sec
            uint32 nanosec
        string frame_id
    uint8 type
    float32[3] w    #
    float32 speed   #
    float32 psi     #
    float32 hold_seconds
    bool hold_indefinitely
    bool use_lla
bool publish_now
---
bool success
string message

Verify Mission Loading

You can check that the waypoints are loaded by looking at the roscopter_gcs RViz GUI. You should see something like:

Publishing Additional Waypoints

Note that the path_planner will publish only the first few waypoints (determined by the num_waypoints_to_publish_at_start parameter). Publish the next one by calling:

ros2 service call /path_planner/publish_next_waypoint std_srvs/srv/Trigger

or by setting the parameter to the desired value:

ros2 param set /path_planner num_waypoints_to_publish_at_start 100

Enabling Autonomous Flight

After loading missions, enable autonomous flight through rc's services. When starting up ROSflight, RC override will be enabled by default, meaning that the companion computer will not control the vehicle. To enable offboard control, you will need to disable RC override.

Arm and Start Mission

Note

If using VimFly or a transmitter, these services will not be available. Use the transmitter or VimFly to arm and disable RC override.

# Arm the vehicle (enable motors)
ros2 service call /toggle_arm std_srvs/srv/Trigger

# Turn off RC override -- make sure it is toggled on before arming
ros2 service call /toggle_override std_srvs/srv/Trigger

Monitor Flight Progress

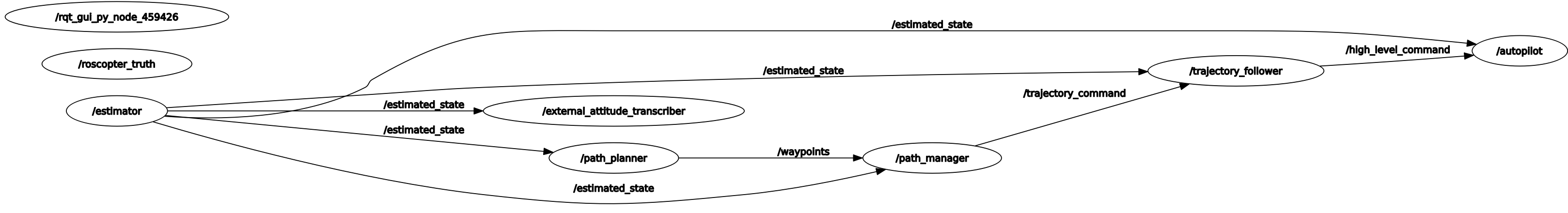

In ROScopter, every module communicates with the other modules via ROS2 publishers and subscribers. You can track the status and state of the vehicle by echoing the relevant ROS2 topics. We often will use PlotJuggler to visualize the data to monitor what is going on internal to the system.

For example:

# Monitor vehicle state during flight
ros2 topic echo /estimated_state

# High level controller commands (sent to ROScopter controller)
ros2 topic echo /high_level_command

# Low level controller commands (sent to ROSflight firmware)
ros2 topic echo /command

Tuning Flight Performance

It is possible that the flight performance is unstable due to the autopilot's gains not being set correctly. See the tuning guide for more information.

Helpful Tips

Resetting the Simulation State

The standalone_sim module has a very simplistic ground plane representation (i.e. no friction). This means that when the aircraft is armed, it will drift over time. If this happens to you, you can reset the simulation state of the vehicle.

You can reset the state of the vehicle by using a service call provided by the dynamics node using

ros2 service call /dynamics/set_sim_state rosflight_msgs/srv/SetSimState

Note that in this command we didn't specify what the values for the SetSimState message type are, so they default to zero. This should move the vehicle to the origin in the standalone sim. If you are using the Gazebo simulator, a position of [0,0,0] is underground, so the vehicle will respond erratically.

You can set the simulation state to any arbitrary state by providing the information in the SetSimState service definition.

How do I know what information is contained in a message definition?

One way is to go find the message definition file in the package where it was built (i.e. rosflight_msgs package in the rosflight_ros_pkgs repository).

Another option is to use the ros2 interface show <name-of-interface> command. For example, to find out what is included in the SetSimState service definition, do

ros2 service call rosflight_msgs/srv/SetSimState

and look through the output.

Review

You have successfully completed the ROScopter autonomous flight tutorial. You should now be able to:

• Launch ROScopter Stack: Start the complete autonomy stack with estimator, controller, and path management
• Load Waypoint Missions: Create and load waypoint missions from YAML files or via ROS services
• Execute Autonomous Flight: Arm the vehicle and fly autonomous waypoint missions

Next Steps

Once you have ROScopter running autonomously, you can:

1. Fixed-Wing Autonomous Flight: Explore ROSplane for fixed-wing autonomous flight
2. Parameter/Gain Tuning: Use RQT plugins to tune PID controllers and optimize flight performance
3. Custom Applications: Develop your own ROS2 nodes that interface with ROScopter
